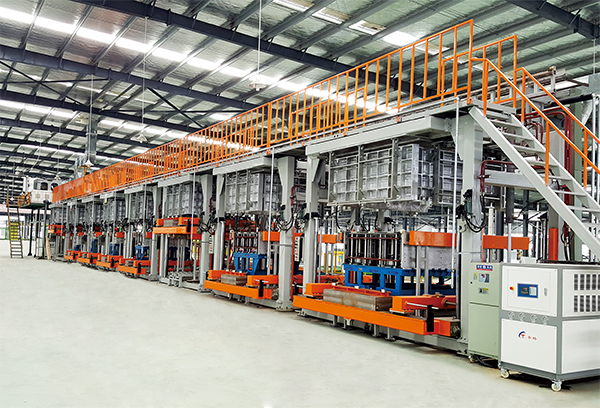

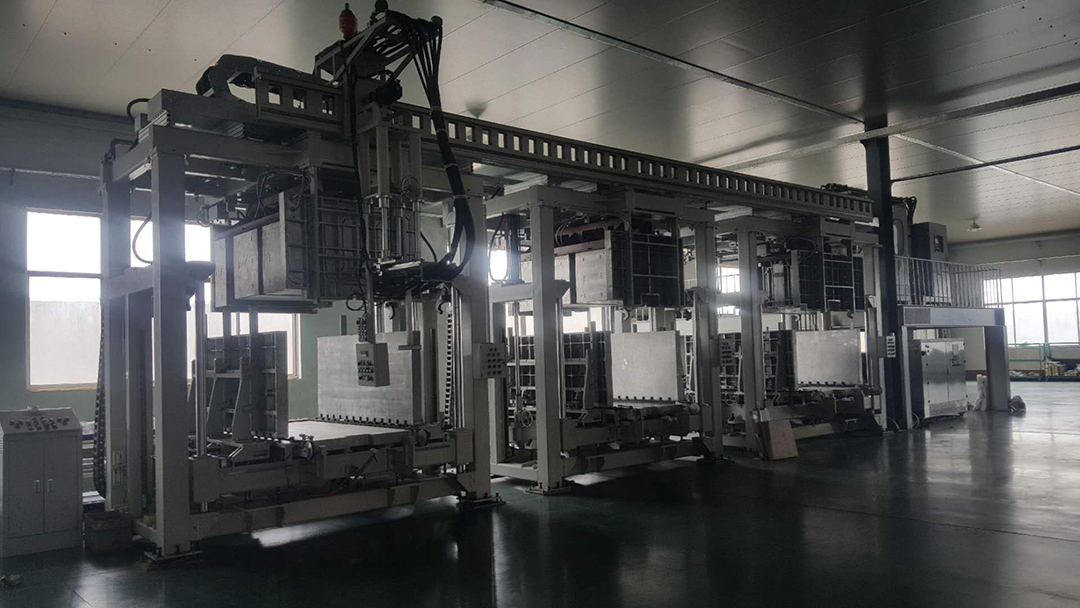

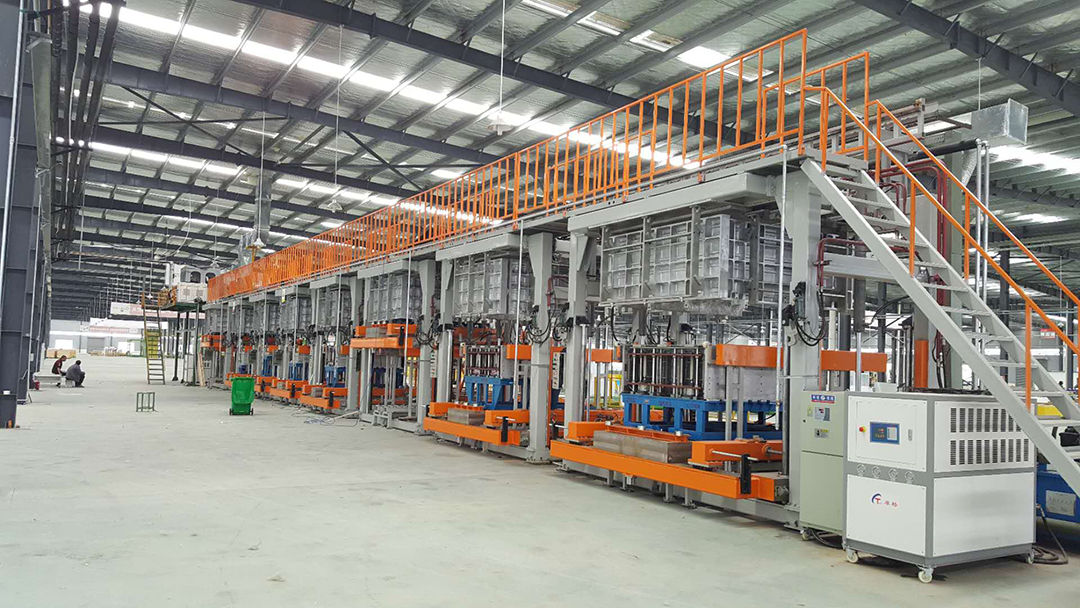

直线式箱体发泡线的作用:只要用于冰箱或冰柜箱体聚氨酯发泡。该发泡线有预热烘炉, 动力滚筒线, 进箱90°转向机(含箱体识别), 双向运载系统(可汗自动充氮装置)发泡家具,自动充注系统, 出翔顶升平移机,外膜水加热系统以及配套启动系统, 电控系统等部分组成。该发泡线采用直线式布局, 夹具外模采用模温机循环水加热系统。夹具具有自动堵泡和自动抽心功能, 换模采用气缸或人工驱动连杆机构, 有人工控制和电气控制双重自锁功能。适用于不同长,宽高的箱体生产。 生产线具有外形美观大方,结构紧凑,环境污染少,劳动强度小,占地面积小,功能强,生产效率高, 多品种柔性生产等特点。
通用技术参数 Technical Data Sheet
型号Model
参数Parameter
直线式发泡线
Linear foaming lines
箱体规格(mm)
Dimensions(mm)
L:800~2000 W:450~1000 D:450~1000
固话时间
Curing time
999秒内可调
Adjustable within 999 s
固化温度
Curing temperature
35-70℃可调
35-70℃ adjustable
工位数
Working station
6~8
充注形式
Injection mode
单枪头一端水平充注或双枪头背部充注
Horizontal injecting by single head from the side of line or injecting by double head from the back
发泡介质
Foaming agent
POL混环戊烷+ISO或POL混141b+ISO
POL(Mixture of cyclepentane +ISO or mixture of 141b+ISO)
生产节拍
Cycle time
50~60秒/台(具体由夹具数量和箱体固化时间确定)
About 50~60s/pcs(depend on curingtime and fixture quantity)
品种规格
Product model
可同时生产6~8中不同规格的产品
Able to process 6~8 different products at the same time
夹具升降驱动方式
Fixture driven mode
电机驱动或液压驱动
Driven by electric motor of hydraulic
电压
Voltage
380v ,50HZ
生产线总功率
Total power
最大≤190kw, 柜外电源24v
Max≤190kw, control box power:24v
压缩空气气源
Compressed air supply
工作压力≥0.5Mpa, 流量约 0.1m³/min
1/2”(0.5Mpa) air consumption 0.1m³/min
HAF40-DZ
HAF60-DZ
HAF100-DZ
外形尺寸
~6000
节拍
Beat
~3S(不含人工注料及人工操作时间)
(Not including feeding and manual operation time)
最大流量
Max Flow
~600g/s
~900g/s
~1500g/s
单料罐容积
Single Material Tank Volume
~260L
~350L
~500L
总电容量
Total Power(380V50HZ)
~39KW
~51KW
~60KW
组分比例
Component proportion
5:1~1:5
5:1~1:3
水源
Source of Water
1/2”(工业自来水)
1/2”(Industrial running water)
气源
Source of Gas
1/2,0.6Mpa(氮气最佳)
1/2,0.6Mpa(Nitrogen is optimum)
